TCT METAL DRY CUT SAW BLADES
-

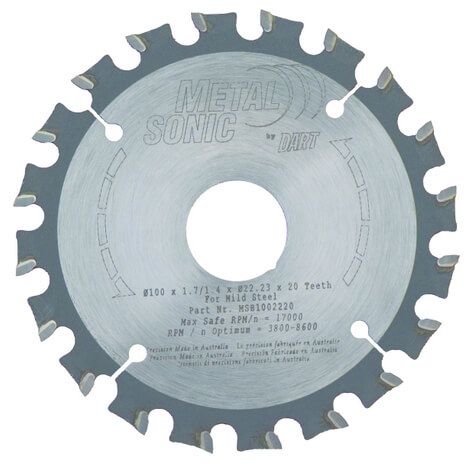

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 3mm ThickSpecifications:METAL SONIC BLADE 100MM DIA X 1.7/1.4 X 16MM BORE X 20T FWFStock Code:MSB1002220$54.59 (ex GST)
-
Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 3mm ThickSpecifications:METAL SONIC BLADE 115MM DIA X 1.7/1.4 X 22.2MM BORE X 20T FWFStock Code:MSB1152220$58.46 (ex GST)
-
Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 3mm ThickSpecifications:METAL SONIC BLADE 125MM DIA X 1.7/1.4 X 22.2MM BORE X 20T FWFStock Code:1252220Stock Code:MSB1252220$58.46 (ex GST)
Designed to suit 4” to 5” angle grinders, METAL SONIC small cold cut TCT Metal blades offer fast clean cuts when cutting thin sheet metal, pipe, RHS & smaller solids. The Generation 6 cutting geometry provides extended life, far outperforming traditional abrasive grinding wheels and cut of disks.
Suitable for cutting mild steel, aluminium, colour-bonded cladding, corrugated iron, coolroom panel, plastics, perspex, timber & wood with nails.
DETAILS:
• Embedded Tungsten Tip (TCT), Generation 6 Tooth Geometry
• Expansion slots for reduced vibration
• Can be sharpened
Note: Bore sizes can be modified on request to suit specific machine spindles.
RECOMMENDED BLADE SPEEDS:
100 – 115mm: 5500 – 8550 RPM
125mm: 4200 – 6900 RPM -

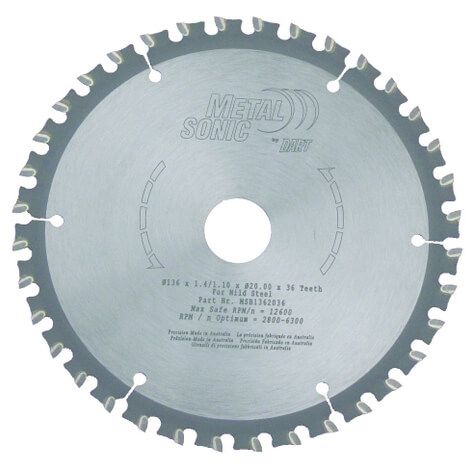

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 3mm ThickSpecifications:METAL SONIC BLADE 136MM DIA X 1.4/1.1 X 20MM BORE X 36T FWFStock Code:MSB1362036$94.80 (ex GST)
-

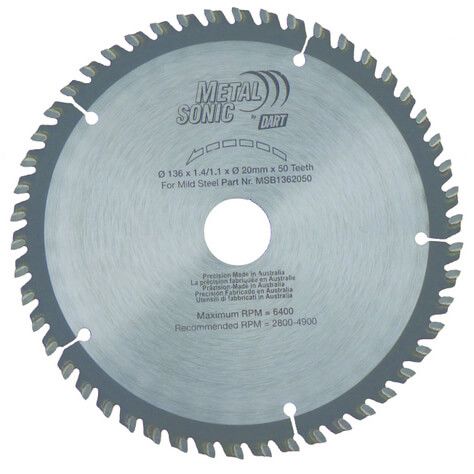

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 3mm ThickSpecifications:METAL SONIC BLADE 136MM DIA X 1.4/1.1 X 20MM BORE X 50T ATB 3°Stock Code:MSB1362050$104.15 (ex GST)
-

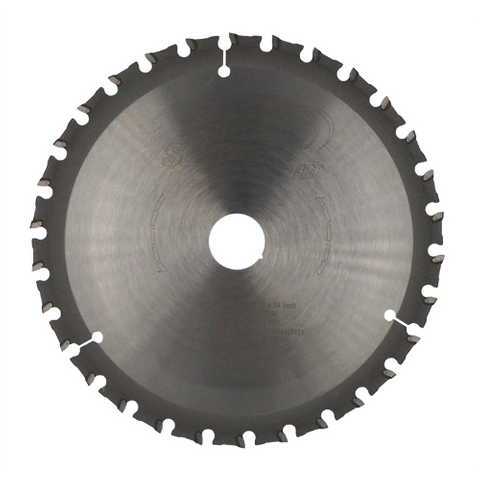

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 150MM DIA X 2.1/1.6 X 20MM BORE X 30T FWFStock Code:MSB1502030$93.38 (ex GST)
-

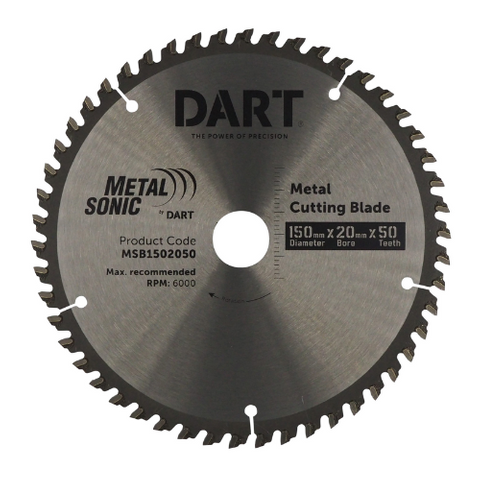

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 150MM DIA X 2.1/1.6 X 20MM BORE X 50T FWFStock Code:MSB1502050$104.86 (ex GST)
-

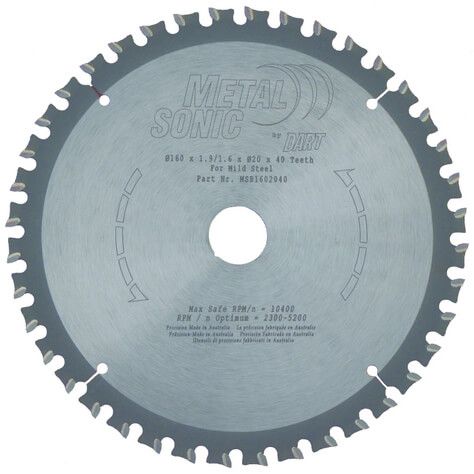

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 160MM DIA X 1.9/1.6 X 20MM BORE X 40T FWFStock Code:MSB1602040$94.24 (ex GST)
-
Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 160MM DIA X 1.9/1.6 X 20MM BORE X 50T ATBStock Code:MSB1602050$103.14 (ex GST)
-

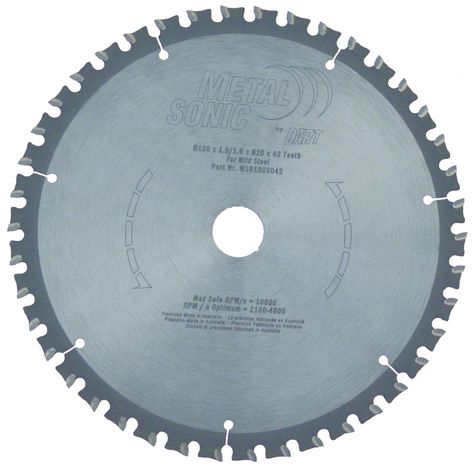

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 180MM DIA X 1.9/1.6 X 20MM BORE X 42T FWFStock Code:MSB1802042$101.27 (ex GST)
Designed to suit drop saws, power & plunge saws, METAL SONIC medium cold cut TCT Metal blades offer fast clean cuts when cutting thin sheet metal, pipe, RHS & smaller solids.
Suitable for cutting mild steel, aluminium, colour-bonded cladding, corrugated iron, coolroom panel, plastics, perspex, timber & wood with nails.
DETAILS:
• Embedded Tungsten Tip (TCT), Generation 6 Tooth Geometry
• Expansion slots for reduced vibration
• Can be sharpened
Note: Bore sizes can be modified on request to suit specific machine spindles.
RECOMMENDED BLADE SPEEDS:
136mm: 5500 – 8550 RPM
150 - 160mm: 4200 – 6900 RPM
180mm: 3200 – 4000 RPM
235mm: 2600 – 3900 RPM -

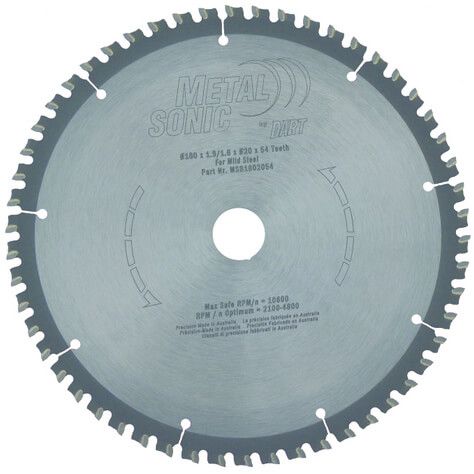

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 180MM DIA X 1.9/1.6 X 20MM BORE X 54T FWFStock Code:MSB1802054$112.48 (ex GST)
-

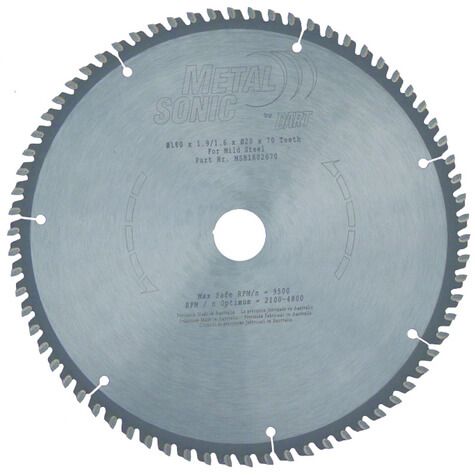

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 180MM DIA X 1.9/1.6 X 20MM BORE X 70T ATB 3°Stock Code:MSB1802070$122.68 (ex GST)
-

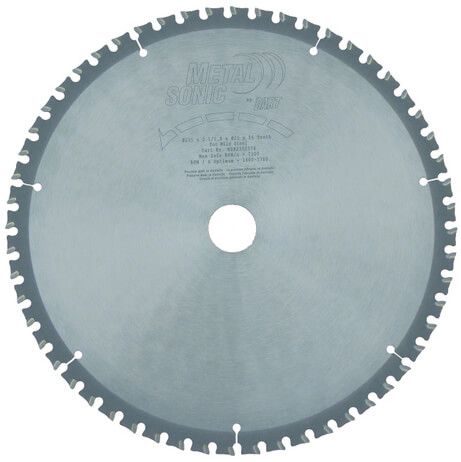

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 235MM DIA X 2.1/1.8 X 25MM BORE X 56T FWFStock Code:MSB2352556$146.38 (ex GST)
-
Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 250MM DIA X 2.1/1.8 X 30MM BORE X 60T FWFStock Code:MSB2503060$176.26 (ex GST)
-

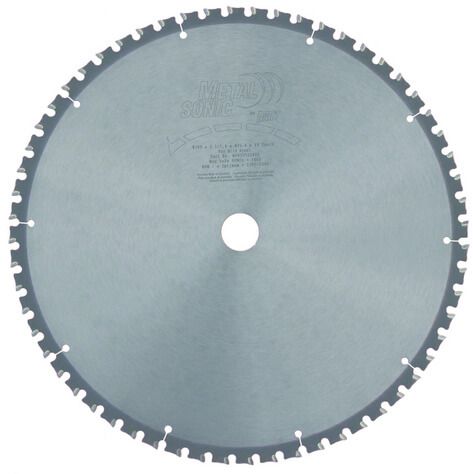

Application:Dry Cutting Steel, Pipe and Corrugated Iron up to 5mm ThickSpecifications:METAL SONIC BLADE 305MM DIA X 2.1/1.8 X 25.4MM BORE X 60T T.CHIPStock Code:MSB30525460$226.39 (ex GST)
