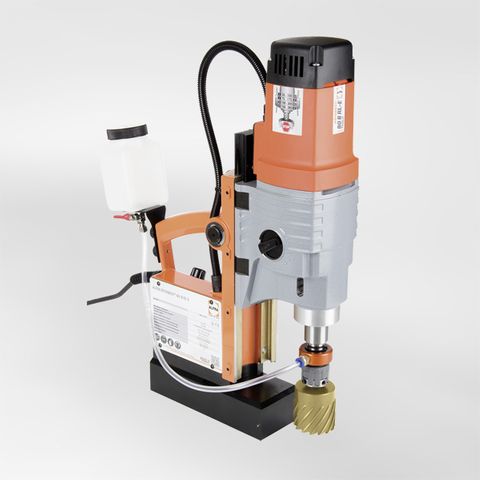

EXC 80 RL-E MAG BASED DRILL
-
Application:In-Situ Drilling and Tapping of Mild, Stainless and Hardened SteelsSpecifications:Magnetic Based Drill, Holes up to 80mm Diameter, 110mm DeepStock Code:18626$6,841.80 (ex GST)
FEATURES:
• FOUR STAGE VARIABLE DRIVE GEARBOX FOR OPTIMUM CUTTER LIFE
(50-100RPM, 75-175RPM, 105-245RPM, 165-385RPM)
• REVERSIBLE DRIVE SUITABLE FOR TAPPING APPLICATIONS
• OIL BATH GEARBOX DESIGNED FOR CONTINUOUS CUTTING
• HEIGHT ADJUSTABLE SLIDE - ALLOWS AJUSTMENT FOR USING STANDARD TWIST DRILLS IN ADAPTER CHUCK
• MT3 ARBOR FOR FLEXIBILITY WHEN CHANGING BETWEEN DRILLING & TAPPING APPLICATIONS
• ADJUSTABLE MAGNETIC BASE FOR FLEXIBILITY IN DIFFICULT ACCESS SITUATIONS
• SPRING LOADED GUIDE FOR SMOOTH EASY OPERATION
• CAPACITY TO DRILL HOLES UP TO 80MM DIAMETER, 110MM DEEP
SPECIFICATIONS:
• Arbor: Morse Taper 3
• Broach Drill Cutter Size: 12mm to 80mm
• Cutting Depth: 50mm / 110mm
• Twist Drill Capacity: up to 32mm with QR Chuck MT3 DIN 345 Direct
• Countersinking / Counterboring: 10 - 55mm
• Tapping Capacity: Up to M30 with attachment / chuck
• Power: 1800W
• Stroke: 190mm
• Height Adjustment: 60mm
• Magnetic Force: 4,000N/20,000N
• Magnetic Base: 92x238mm, 30° adjustable right and left, 10mm front and back
• Weight: 22KG
• Manufactured in Germany
