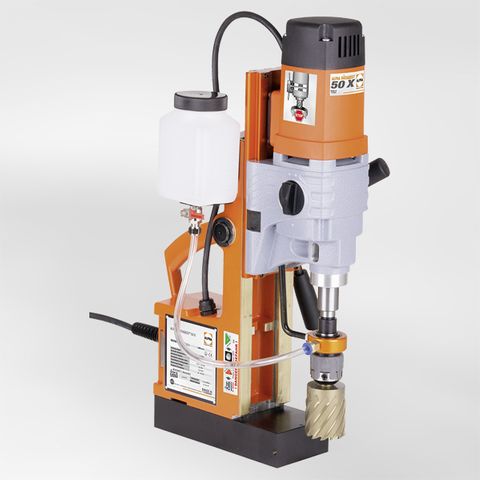

EM50 MAG BASED DRILL
1 to 1 of 1 results
-
Application:In-Situ Drilling of Mild, Stainless and Hardened SteelsSpecifications:Magnetic Based Drill, Holes up to 50mm Diameter, 50mm DeepStock Code:18510$3,925.40 (ex GST)
FEATURES:
• TWO SPEED GEARBOX (250 & 450RPM), SUITABLE FOR LARGER CUTTERS
• OIL BATH GEARBOX DESIGNED FOR CONTINUOUS CUTTING
• HEIGHT ADJUSTABLE SLIDE - ALLOWS AJUSTMENT FOR USING STANDARD TWIST DRILLS IN ADAPTER CHUCK
• WELDON SHANK ARBOR FOR ACCURATE DIRECT DRILLING
• SPRING LOADED GUIDE FOR SMOOTH EASY OPERATION
• CAPACITY TO DRILL HOLES UP TO 50MM DIAMETER, 50MM DEEP
SPECIFICATIONS:
• Arbor: Weldon 19mm
• Broach DrillCutter Size: 12mm to 50mm
• Cutting Depth: 50mm
• Twist Drill Capacity: up to 16mm with QR Chuck
• Countersinking / Counterboring: 10 - 40mm
• Power: 1500W
• Stroke: 190mm
• Height Adjustment: 100mm
• Magnetic Force: 3,000N/12,000N
• Weight: 15KG
• Manufactured in Germany
